12 VDC - 24 VDC Direct Spark Gas Ignition Control Modules
12 VDC - 24 VDC Gas Ignition Control

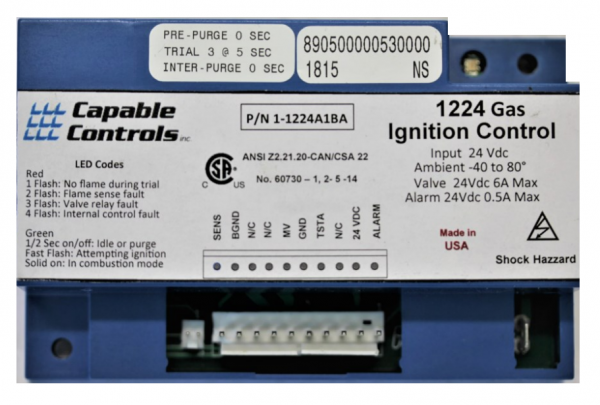

The 12-24 control is designed for new OEM applications, and direct replacement of older 12 and 24VDC gas ignition controls. The 12-24 control is available in either a high impact resin housing or a circuit board w/standoffs board. Two pin header connection types are offered for various applications. Also, a short-circuit proof 0.03A. alarm output is available. Red/Green LED's are included for enhanced status and troubleshooting. Reverse polarity protection, optional 12 or 24V detection and operation. Safety-Check is standard, monitoring the flame safety circuit continuously during operation.
| Data Sheet | DSI and IP Ignition Controls |
Features
- High Spark Rate with increased output energy per spark.
- 12 and 24 VDC operation, with automatic voltage detection. (optional)*
- Mounts in industry standard footprint.
- Operating and error mode indication with two color LED indicator.
- All connections through standard 0.156in, 10pin or 6 pin header (optional)
- 0.03 Ampere short circuit protected Alarm Output.
- Agency Listed to: ANSI Z21.20 - CAN/CSA 22.2- No. 60730 -1, 2-5 - 14
| Power Requirement | 12VDC -15%, +10%, or 24VDC -15%, +10% |
| Control Current | 85mA typical. (control only) |
| Power Consumption | 1W nominal at 12VDC |
| Valve Switching Current | 4 Amperes (all) |
| Operating Temperature | -40 to 176° F, -40 to 80°C |
| Storage Temperature | -40 to 176° F, -40 to 80°C |
| Spark Voltage | 18 kVp typical. |
| Spark Rate | 30Hz at nominal voltage and temperature. |
| Spark Energy | 2.0 mJ per spark. |
| Flame Sensitivity | 0.3uA minimum (remote or integral flame sensing) |
| Flame Fail Response | 0.8 seconds |
| Humidity | 5 to 90% non-condensing. |
| Spark Gap | 0.20in/ (5mm.) maximum. |
| Trials for Ignition | 1 - 10 |
| Ignition Trial Time | 1 - 90 seconds |
| Pre and Interpurge Time | 1 - 200 seconds |
| Dimensions (in.) | 1.80in. (45.7mm) high, 2.30in. (59.4mm), 4.00 (101.6mm) long. |
| Mounting Hole Pattern | 3.65in. (92.7mm), 1.95in. (49.5mm). |
| Mounting Method | 0.425in standoffs (#6 or #8) screw. |
| Weight | 2.4 ounces, (68 grams) |
Please contact us or request for quote regarding your 12V Series needs.
